Project Description

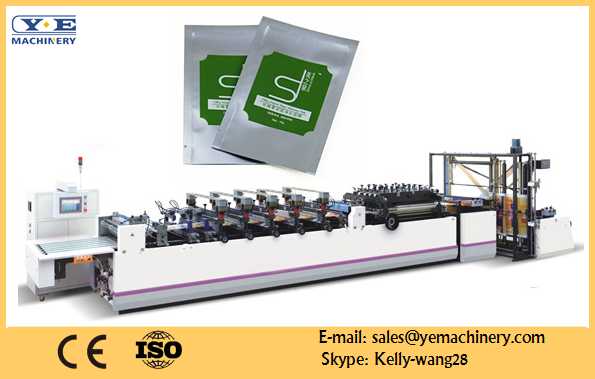

ZD-TS Serious 3 side sealing bag making machine

Send Enquiry
Bag making Machine
Use:

It is an ideal Bag making equipment for producing three-side sealing bags, with 2 servo motor. Material: Laminated Film As; LDPE, CPP, MCPP, AL, NYLON, PP etc.

Featrues:

1. Whole machine controlled by central PLC control system with touch screen. More stable performance, easy for operation and maintenance. Chinese and English interface language can be changed easily.
2. Constant auto-tension control for unwinding, EPC edge alignment, AC inverter constant speed auto material feeding.
3. Imported double servo-motor material traction control system
4. Main motor for up-down sealing and pressing equipped with inverter.
5. PID for sealing bar temperature adjustment, no touch auto control, centralized setting in man-machine interface.
6. Equipped with Pneumatic multi-function auto punching device, trim cutting and auto rewinding and static eliminator
7. Temperature adjustment range: 0~300℃
8. Counter: quantity, batch accumulation, pre-set available.
9. Operation Method: by length fixation control and/or by photocell tracking control.
10. Punching device: working rhythm can pre-set as continuous, interval or stop, punching time can be pre-set.
11. Material Skip Feeding: 1-6 times available.
12. Batch Conveying Function available, the quantity of batch can be pre-set.

Main Parameters:

TypeZD-500TSZD-600TS
Max. Diameter Of Roll Material600mm600mm
Max. Width Of Roll Material1050mm1250mm
Max.Capacity160pieces/min160pieces/min
Max.Mechanical Speedabout.40m/minabout 40m/min
Total Power40Kw45Kw
Weight 5000kg5500kg
Overall Dimension (L*W*H)9000*2000*1870mm9000*2000*1870mm
3side sealing bag

Three side seal (Max: Four bags/ once)

4bags once3 side seal bag

ZD-TS Serious 3 side sealing bag making machine

It is an ideal Bag making equipment for producing three-side sealing bags, with 2 servo motor. Material: Laminated Film As; LDPE, CPP, MCPP, AL, NYLON, PP etc.
