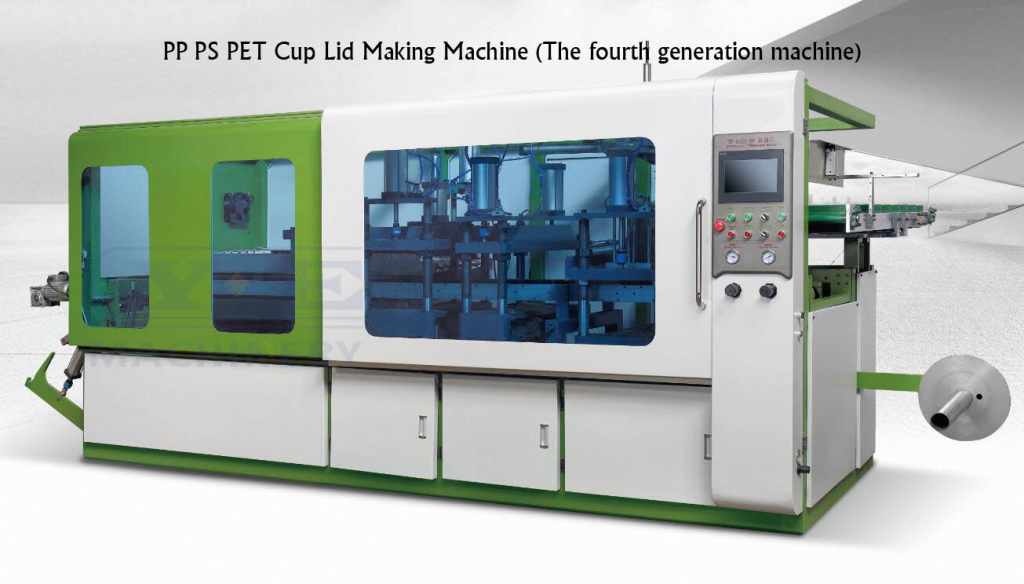

Automatic High speed PP cup lid making machine

pp cup lid making machine

It is suitable to form various plastic cup lids with the materials of PP, PS, EPS, PVC, PET.

Design Features:

●To finish the forming, punching and cutting–stacking in one machine, it can save your time and energy.
●Combination of mechanical, electrical and pneumatic components with PLC auto-control and inverter control create efficient and energy conservation.
●Touch screen makes the simple, safe and automatic operation.
●Upper or lower mold forming method.
●Feeding servo motor makes accurate and durable operation.
●High capacity 25 circles/min.
●With automatic stacking, max 50pcs/cavity,which can pack the lids on packing machine directly.
●With compact structure, easy operation and convenient maintain.

Main Parameters:

air PressureTF5528
Max. Forming Area540*280 mm
Depth of Draw under sheet60mm Max
Depth of Draw above sheet30mm Max
Suitable materialPET PP PS EPS PVC
Sheet Width350-460 mm
Material Thickness Range0.2-2 mm
Material Roll Diameter1100 mm
Maximum Rewinding diameter:700 mm
Cycles per Minute25
Power Supply3-N AC380V±15V
Air Pressure0.7 Mpa
Cooling water cooling
Heating power50 kw
Feeding servo motor power3 kw
Dimension(L×W×H)3000*1850*2100 (mm)
Weight3500 kg
