Automatic Holographic Positioning Foil Stamping Die Cutting Machine

 Automatic Holographic Positioning Foil Stamping Die Cutting Machine

We designed 1050FF Automatic Holographic Positioning Foil Stamping Die Cutting Machine, which is the greatest research and development and manufacturing of new equipment with a higher degree of intelligence.
This machine adopts numerous advanced pneumatic and servo driving processing technology from abroad. After the strict assembly quality control, it has advantage of simple operation and safe reliable.
It could foil stamping, creasing and die cutting after printing products, such as more than 80g/m2 paper, cardboard, corrugated paper below 4mm, pasting paper, laminating paper and so on.
Good quality and design makes machine work stably and safety when machine’s speed reach 7500 sheets/h. This machine will provide you to enjoy the comfortable operation and faster return on investment.

Machine features:
1.Feeder/Feeding Section

Feeder Feeding Section

The design of stacker preparatory stage was improved, it could use prepared car sheet piling. Also could use ordinary hydraulic car sheet piling to stacker directly. The machine has four suction nozzles and four sending nozzles in feeder, ensure feed smoothly. Adopt import screw air-blowing device, it could make the sheet send smoothly.

2.Feeding Positioning Section

Feeding Positioning Section

The incline-type paper moving table top is more suitable to high-speed thin paper and location. Side location adopt dual purpose side device with pull guide and push guide, accounting to paper choose, it makes switch easier. It could switch front rise position arriving reduction of speed device, it is benefit of thin paper’s location.

3.Cutting Section/Horizontal and vertical foil stamping system

Cutting Section Horizontal and vertical foil stamping system

Adopt advanced technology with single gripper location could adjust the front-and-back registration. Horizontal hot stamping dual- anxis/Vertical hot stamping collection of waste foil frame into operation side, it is benefit of operation. 12 electric heating areas have timing penumatic temperature controller function, each area can be controlled separately. It makes foil-delivering servo curve tracking the speed variation of machine in time for using motion controller. So it could reach the foil-delivering smoothly.

4.Die Cutting Section

Die Cutting Section

The driving gear ensures high speed of die cutting together. The pneumatic locking mechanism and air clutch are fast and stable. The die cutting frame can prevent the die cutting plate from drooping or separating effectively.

5.Quick Changed Foil Device

Quick Changed Foil Device

Vertical under foil frame could be pulled out of machine, so that it could make the foil work more convenient.

6.Rewinding Device

Rewinding Device

There has brush rewinding foil function. And it has equipped with a simple collection waste foil device.

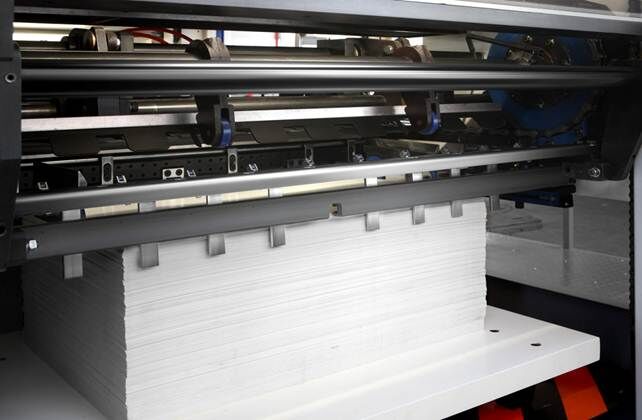

7.Delivery Section

Delivery Section

Delivery section add tester into security system. It is equipped with inset counter. Using subsection could adjust brush and sheet air- blowing device, so the finished product of delivery section could product stably. Gripper drive train expanded buffer device.

8.High-Quality Foil Stamping Honeycomb Panel

High-Quality Foil Stamping Honeycomb Panel

9.Nine Groups of Japanese Anchuan Servo Drivers

Nine Groups of Yaskawa Servo drives from Japan

Other important features:
1. Pneumatic Clutch
The imported high quality pneumatic clutch reduces noise and minimizes impact when stopping the machine at a high speed.

Pneumatic Clutch

2. Lubrication System
With a programmable lubrication system, the accurate control of PLC ensures balanced lubrication of the machine.

Lubrication System

3. Air Pump
Adopt imported equipment, improve the stability of the machine, low noise, high performance, long service life.

Air Pump

4. Gripper and Chain

Gripper and Chain

The grippers are made of special extra hard aluminum alloy, with anode treatment on the surface, ensuring accurate die cutting and embossing, ect. at high speed. The adjustment mechanism, patent design guarantees very accurate control. An imported chain is used for the main gripper transmission, with strength increased by 45% for accurate stability and prolonged life.

Main Parameters:

NameAutomatic Holographic Positioning Foil Stamping Die Cutting Machine
Max. Sheet Size1050×750mm
Min. Sheet Size400×360mm
Max. Cutting Range1040×720mm
Inner Chase Size1080×745mm
Die Cutting Steel Plate Size1080×736mm
Paper Thickness80-2000 g/m2 Cardboard
Corrugated paper≤4mm
Min. Waster Side Width8mm
Max. Mechanical Speed7500 sheets/h
Max. Die Cutting Pressure300T
Max. Feeding Pile Height1550mm
Max. Delivery Pile Height1400mm
Total Weight18T
Max. Foil Stamping Range1020×600mm
Die Cutting Precision≤ ± 0.075mm
General Foil Stamp Precision≤ ± 0.075mm
Holographic Positioning Precision≤ ± 0.20mm
Stamping Temperature Range0°C-200°C
Heated Plate Power24kw
Total Power57kw
Voltage Requirements380V 50Hz
Air compressor0.8Mpa, 0.36m3/min, 3kw
Vertical foil stamping section performance specification
Max. Foil Width1020mm
Min. Foil Width25mm
Max. Length of Pull Foil700mm
Max. Diameter of FoilΦ240mm
Horizontal foil stamping section performance specification
Max. Foil Width600mm
Min. Foil Width25mm
Max. Length of Pull Foil1020mm
Max. Diameter of FoilΦ200mm
sample of 1050FF with logo

Sample of 1050FF
