Automatic Foil Stamping and Stripping Die Cutting Machine

Automatic Foil Stamping and Stripping Die Cutting Machine

We designed 1050ESF Automatic Foil Stamping and Stripping Die Cutting Machine, which is the greatest research and development and manufacturing of new equipment with a higher degree of intelligence.
This machine adopts numerous advanced pneumatic and servo driving processing technology from abroad. After the strict assembly quality control, it has advantage of simple operation and safe reliable.
It could foil stamping, creasing and die cutting after printing products, such as more than 80g/m2 paper, cardboard, corrugated paper below 4mm, pasting paper, laminating paper and so on.
Good quality and design makes machine work stably and safety when machine’s speed reach 7500 sheets/h. This machine will provide you to enjoy the comfortable operation and faster return on investment.

Machine features:
1.Feeder/Feeding Section

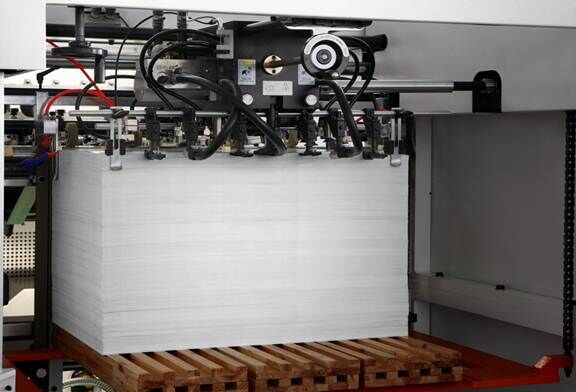

Feeder Feeding Section

The design of stacker preparatory stage was improved, it could use prepared car sheet piling. Also could use ordinary hydraulic car sheet piling to stacker directly. The machine has four suction nozzles and four sending nozzles in feeder, ensure feed smoothly. Adopt import screw air-blowing device, it could make the sheet send smoothly.

2.Automatic Sheet Piling Position System

Automatic Sheet Piling Position System

The sheet pre-pile plate will be moved to fixed position automatically when you enter the sheet size. It is very convenient for operator to load the paper.

3. Feeding Positioning Section

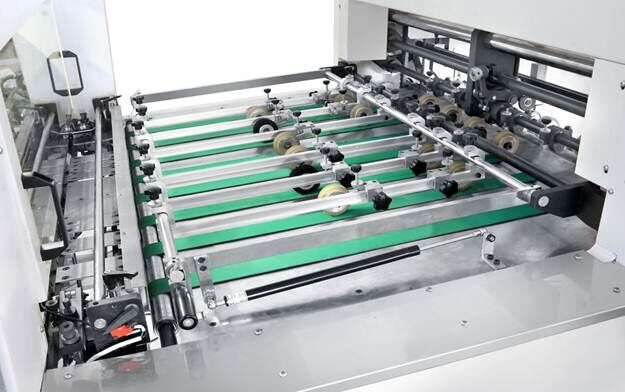

Feeding Positioning Section

The incline-type paper moving table top is more suitable to high-speed thin paper and location. Side location adopt dual purpose side device with pull guide and push guide, accounting to paper choose, it makes switch easier. It could switch front rise position arriving reduction of speed device, it is benefit of thin paper’s location.

4.Foil Feeding Section

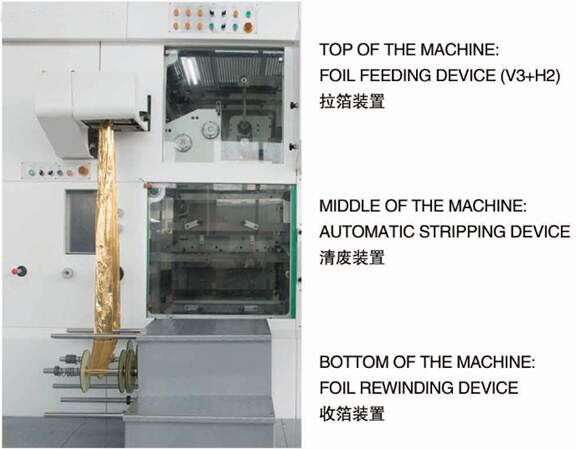

Foil Feeding Section

Vertical: 3 shafts (A/B/C)
Horizontal: 2 shafts (E/F)

5.Foil Stamping/ Die Cutting Plate Quick Changed Section

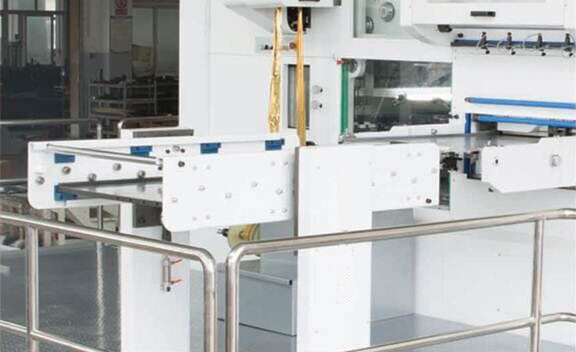

Foil Stamping Die Cutting Plate Quick Changed Section

Operator could change foil stamping plate to die cutting plate quickly through this device.

6.Foil Stamping/ Die Cutting Section

Foil Stamping Plate

Foil Stamping Plate

Die Cutting Section

Die Cutting Plate
The driving gear ensures high speed of die cutting together. The pneumatic locking mechanism and air clutch are fast and stable. The die cutting frame can prevent the die cutting plate from drooping or separating effectively.


7.Electric Appliance Cabinet

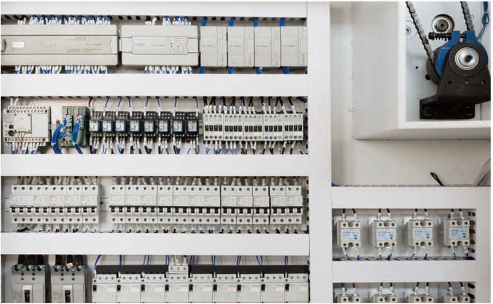

Electric Appliance Cabinet

All main electric appliances were imported from foreign countries, make sure machine running smoothly and stably.

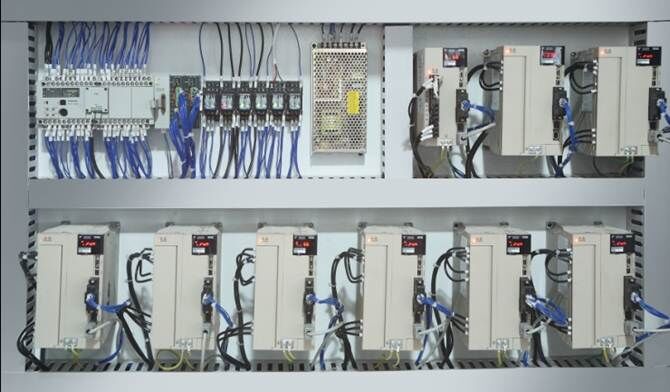

Nine Groups of Yaskawa Servo drives from Japan

Yaskawa Servo drives from Japan

8.Remote Control System

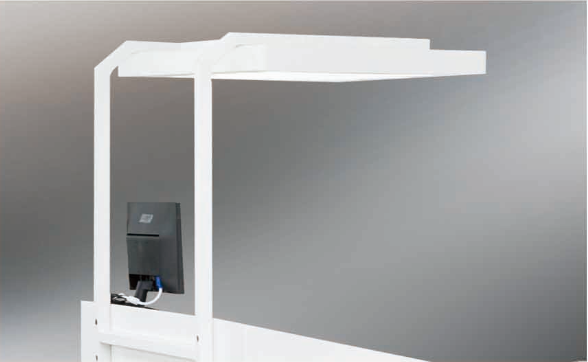

Remote Control System

After connecting the internet, through this system we could remote control this machine then solve problems for customers.

9.Delivery Section

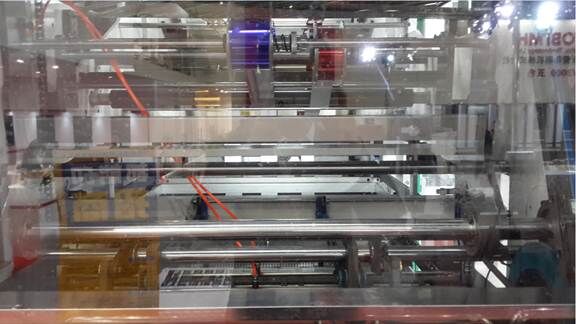

Delivery Section

Delivery section add tester into security system. It is equipped with inset counter. Using subsection could adjust brush and sheet air-blowing device, so the finished product of delivery section could product stably. Gripper drive train expanded buffer device.

Other important features:
1. Pneumatic Clutch
The imported high quality pneumatic clutch reduces noise and minimizes impact when stopping the machine at a high speed.

2. Lubrication System
With a programmable lubrication system, the accurate control of PLC ensures balanced lubrication of the machine.

3. Air Pump
Adopt imported equipment, improve the stability of the machine, low noise, high performance, long service life.

4. Gripper and Chain

The grippers are made of special extra hard aluminum alloy, with anode treatment on the surface, ensuring accurate die cutting and embossing, ect. at high speed. The adjustment mechanism, patent design guarantees very accurate control. An imported chain is used for the main gripper transmission, with strength increased by 45% for accurate stability and prolonged life.

Main Parameters:

Max. Sheet Size1050×750mm
Min. Sheet Size400×360mm
Max. Cutting Size1040×720mm
Max. Foil Stamping Size1040×720mm
Paper Thickness80-2000 g/m2 Cardboard Corrugated paper≤4mm
Min. Waster Side Width8mm
Max. Mechanical Speed7500 sheets/h
Max. Foil Stamping Speed6500 sheets/h
Max. Die Cutting Pressure420T
Max. Feeding Pile Height1540mm
Max. Delivery Pile Height1340mm
Total Weight22T
Dimensions(with pre-pile device)8000×6000×3000mm
Heated System Zone12
Stamping Temperature Range0°C-200°C
Foil Feeding ShaftV3+H2
Total Power70kw
Air compressor0.8Mpa, ≥0.6m3/min
Foil Stamping sample1 Foil Stamping sample2 Foil Stamping sample3 Foil Stamping sample4
