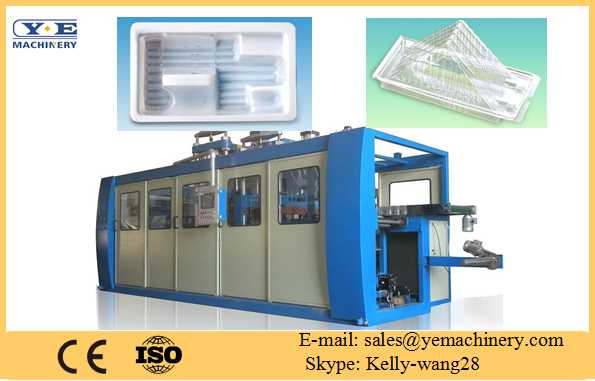

SD-78 Automatic pressure forming machine

SD-78 Automatic pressure forming machine

The automatic pressure forming machines are suitable to form the products with the materials of PP,PS,EPS,PVC,PET.


1.The most representative design feature is to finish the forming、cutting and stacking in one operation unit, it can save your time and engery.
2.The using of Touch screen and PLC control makes the simple,safe and automatic operation.
3.The high technology design and the multi-national components suppliers bring the worldwide reputation and ensure the reliability of our products.
4.The high degree of automation and ingeniously designed toolchange mechanism are worth mentioning, as system of optimised ergonomic design are the steel-rule cutter and the integrated stacking unit.
5.We assure the excellent service including maintenance.

Main Parameters:

Max. Forming Area760*540mm
Depth of Draw under sheet125 mm Max
Depth of Draw above sheet50mm Max
Suitable materialPET PP PS PVC
Sheet Width500- 800 mm
Material Thickness Range0.15-2mm
Material Roll Diameter1200 Max
Rewinding diameter:710mm
Cycles per Minute(dry run)30
Power Supply3-N AC380V±15V
Air Pressure0.7Mpa
Air Consumption3000 Liters/min
Cooling Water Consumption15 Liters/min 15° - 20°C
Heating power of oven100kw
Weight: 12000kg
