SJ-50 PE film blowing machine

Send Enquiry
Bag making Machine
Use:

It is an ideal equipment to produce PE film. PE bag are widely used in supermarket, stores. Material: LDPE, HDPE, LLDPE

Featrues:

1. With wind cooling, air compressor
2. casted aluminum heater
3.Frequency converter speed control

Options:

1. Rotary die head
2. Auto loader
3. Air shaft
4. Double rewinder
5. Corona treatment
6. Lift and down
7. Embossing roller

Main Parameters:

TypeSJ-50SJ-55SJ-60/65
Max. bag width600mm800mm1000mm
Screw diameter50mm55mm60mm
L/D28:128:128:1
Max.Capacity40kgs/hr50kgs/hr65kgs/hr
MaterialLDPE, HDPE, LLDPE
Power volatgeAC380V,50HZ
Film thickness0.01-0.1mm0.01-0.1mm0.01-0.1mm
Weight 1800kg2200kg2500kg
Overall Dimension (L*W*H)4800*1900*3800mm5500*2100*4600mm6500*2300*5200mm

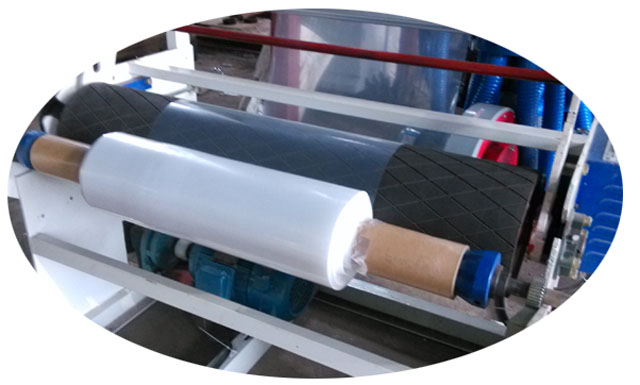

Rewinder with film
