ST-500 Automatic Disposable glove making machine

glove making machine
Use:

It is the ideal Equipment for batch production of PE , EVA  film gloves. The machine also make ice cube bag and finger stall by changing mold. Material: PE, EVA film.

Featrues:

1. It adopt microcomputer control, liquid crystal touch screen display.
2. Step (Servo) motor to fix length.
3. With double photocell to track printing film.
4. the machine can make ice cube bag, fingerstall as well.

Main Parameters:

TypeST -500
Producing Length200-450mm
Producing width240-380mm
Film thickness0.008-0.02mm
Producing Speed40-150piece/min
Main Power1.5Kw
Gross power5KW
Power Source220V 50HZ
Weight600Kg
Overall dimensions(L*W*H)2800×1190×1500mm

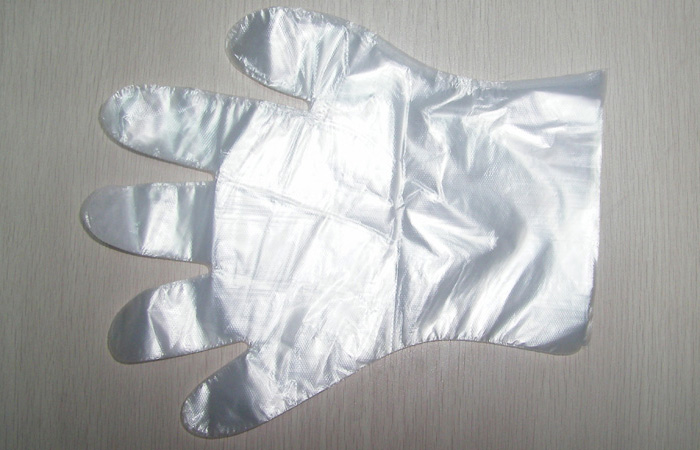

Glove sample
